Plastic Extrusion Demystified for Everyone



Plastic Extrusion Demystified for Everyone

I see plastic extrusion as a process that turns raw plastic pellets into useful shapes like pipes or sheets. To picture it, I think of squeezing toothpaste from a tube—except instead of paste, I use melted plastic, and instead of a tube, I have a special mold. This method produces over 140 million metric tons of plastic products globally each year:

Key Takeaways

• Plastic extrusion transforms raw plastic pellets into useful shapes like pipes and sheets through a continuous process.
• Temperature and pressure control are crucial for ensuring the quality of the final product during extrusion.
• Common products made from plastic extrusion include packaging, construction materials, and medical tubing.
• Recycling leftover plastic during extrusion helps reduce waste and supports sustainable manufacturing practices.
• Understanding the extrusion process allows manufacturers to create customized shapes and meet specific industry needs.

What Is Plastic Extrusion?

Simple Explanation

When I think about plastic extrusion, I see it as a straightforward yet powerful manufacturing process. I start with raw plastic, usually in the form of small pellets or granules. I feed these pellets into a machine that heats them until they melt. Once the plastic reaches the right temperature, I force it through a specially shaped opening called a die. This die determines the final shape of the product. The process continues as the newly formed plastic cools and hardens, and I cut it to the desired length.

I like to compare plastic extrusion to making pasta. I push dough through a pasta maker to get spaghetti or penne. In the same way, I push melted plastic through a die to create pipes, sheets, or other shapes.

Plastic extrusion stands out because it is continuous. I can keep feeding plastic pellets into the machine, and it keeps producing long, uniform shapes. Precise control of temperature and pressure at every stage—feeding, melting, extruding, cooling, and cutting—ensures the quality of the final product.

• Plastic extrusion is a continuous manufacturing process.
• It transforms raw plastic into usable shapes by melting and forcing it through a die.
• Precise control of temperature and pressure is crucial during each stage.

Common Products

I see the results of plastic extrusion everywhere in daily life and industry. Many products I use or encounter rely on this process for their shape and function. Some of the most common items made with plastic extrusion include:

• Wire insulation and conduits that protect electrical wiring
• Plastic channels and trims used in construction and furniture
• Profiles for windows and doors that provide structure and sealing
• LED light diffusers that spread light evenly
• Retail display components for showcasing products
• Road barricades and traffic delineators for safety
• Solar panel mounting components for renewable energy systems
• Custom packaging inserts that keep products secure

Plastic extrusion allows me to create these products efficiently and consistently. I rely on this process to meet the demands of modern manufacturing, from simple tubes to complex profiles. The versatility of extrusion means I can adapt it to many different applications, making it a cornerstone of the plastic industry.

Plastic Extrusion Process Steps

When I guide someone through the plastic extrusion process, I always break it down into clear, manageable steps. This step-by-step process transforms raw plastic pellets into finished products with precision and efficiency. Here’s how I approach each stage:

Feeding Pellets

I begin the plastic extrusion process by selecting the right type of plastic pellets. The choice of material matters because each type brings unique properties to the final product. For example, I often use polyethylene for its lightweight and chemical resistance, polystyrene for its rigidity and clarity, or polypropylene for its strength and high melting point. I pour these pellets into a hopper, which feeds them into the extruder. The hopper ensures a steady flow, so the process remains continuous and efficient.

Tip: I always check the purity and quality of the raw plastic before starting. Consistent material quality helps me avoid defects later in the extrusion.

Here’s a quick comparison of common plastic pellets I use:

Melting Plastic

Once the pellets enter the extruder, I move to the next step—melting the plastic. The extruder barrel heats up to temperatures between 200°C and 275°C, depending on the material. I monitor the temperature closely because each plastic has its own melting point. For instance, polyethylene melts around 105°C to 115°C, while polystyrene requires 210°C to 240°C. The rotating screw inside the barrel compresses and mixes the pellets, ensuring they melt evenly and become a smooth, homogeneous mass.

I know that precise temperature control is essential. If the plastic overheats, it can degrade and lose its properties. If it stays too cool, it won’t flow properly through the die. I rely on advanced monitoring systems to keep the process stable and efficient.

Shaping with a Die

After melting, I push the molten plastic through a die. The die acts as a mold, giving the plastic its final shape. I select the die geometry based on the profile I want—whether it’s a tube, sheet, or custom profile. The land length of the die affects the uniformity and quality of the extrusion. If I choose the wrong length, I risk defects like sagging or warping.

• Die geometry determines the product’s cross-section.
• Land length impacts uniformity and surface quality.
• Cooling mechanisms in the die help maintain shape.

I also pay close attention to temperature and pressure distribution inside the die. These factors influence how the plastic flows and solidifies. For complex shapes, I test the die design thoroughly before full production.

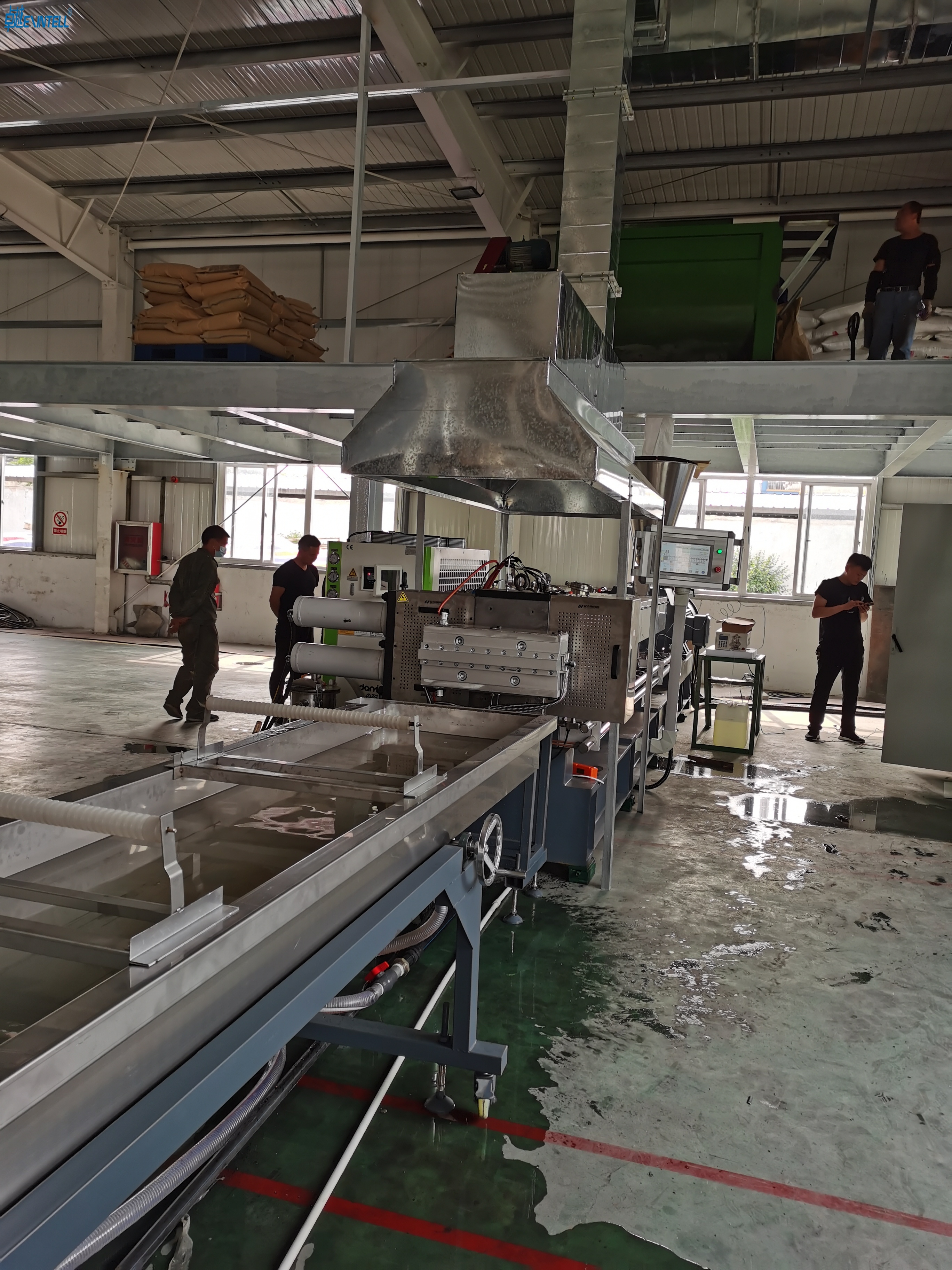

Cooling and Cutting

Once the plastic leaves the die, I must cool it quickly to lock in the shape. I use different cooling methods depending on the product and production speed. Water-cooled systems circulate cool water around the extrusion, which is both cost-effective and efficient. For lower volumes, I sometimes use air-cooled systems. In industrial settings, I rely on chillers for precise temperature control.

I know that cooling can take up to 70% of the total cycle time in some processes. Effective cooling management allows me to increase production speed and maintain high output. After cooling, I cut the extruded plastic to the required length or wind it onto spools for further use.

Note: I always implement quality control checks at this stage. I inspect the dimensions and surface finish to ensure every product meets industry standards.

Here’s a summary of the main steps in the plastic extrusion process:

By following this step-by-step process, I transform simple plastic pellets into high-quality, finished products. My expertise in managing each stage ensures efficiency, consistency, and reliability in every extrusion project.

Types of Plastic Extrusion

When I work in the plastic manufacturing process, I often choose from several types of plastic extrusion. Each method shapes plastic in a unique way and serves different industries. I want to share how I use these techniques to create products you see every day.

Tubing

I use tubing extrusion when I need to make hollow, cylindrical products. This process pushes melted plastic through a round die, forming a continuous tube. I rely on this method for a wide range of applications:

• Plumbing pipes for water and sewage
• Medical tubing for hospitals and labs
• Irrigation systems for agriculture
• Automotive fluid transfer lines
• Drinking straws and vacuum lines

Tubing extrusion gives me control over the diameter and wall thickness. I can adjust the process to meet strict industry standards, especially for medical devices.

Blow Film

Blow film extrusion stands out as a process that creates thin, flexible plastic films. I extrude molten plastic through a circular die, then inflate it with air to form a bubble. This bubble stretches and cools, producing a uniform film. I use this method to make:

• Grocery and shopping bags
• Food packaging wraps
• Liners for containers

Blow film extrusion lets me control film thickness and strength. The process also folds the film at the edges, which makes bag production more efficient.

Sheet Film

When I need flat, wide plastic sheets, I turn to sheet film extrusion. I push melted plastic through a flat die, then cool and roll it into sheets. These sheets serve many purposes:

Sheet film extrusion allows me to produce materials with consistent thickness and surface quality.

Over Jacket

Over jacket extrusion helps me coat wires and cables with a protective plastic layer. I pull the wire through the center of the die while applying molten plastic around it. This process is essential in industries like:

If I need the coating to stick tightly, I use pressure tooling. For a loose fit, I apply jacketing tooling as the wire exits the die. Over jacket extrusion ensures wires stay safe from moisture, chemicals, and abrasion.

Tip: I always select the right extrusion method based on the product’s function and the industry’s requirements. Understanding the types of plastic extrusion helps me deliver reliable, high-quality results.

Benefits of Plastic Extrusion

Efficiency

I rely on plastic extrusion because it delivers unmatched efficiency in manufacturing. The process allows me to create products with consistent cross-sections, which means I can produce complex shapes without sacrificing quality. I operate machines continuously, so I minimize downtime and avoid inventory shortages. This method uses thermoplastics and granules that I can reuse, which lowers raw material and disposal costs.

• I achieve versatility by shaping plastic into pipes, sheets, and profiles for many industries.
• I save money by recycling leftover materials and reducing waste.
• I maintain steady production, which supports large-scale manufacturing.

Plastic extrusion stands out for cost savings. I notice that extrusion dies cost less and take less time to produce than injection molds. I increase output by running machines at high speeds, which decreases labor costs. Energy efficiency also matters. I use less energy per unit compared to other methods, which lowers operational expenses.

When I compare energy consumption, extrusion uses a steady amount of energy because it operates continuously. Injection molding and blow molding require more energy due to repeated heating and cooling cycles.

I support sustainability by recycling plastic waste. I collect leftover materials, melt them down, and reuse them in future products. This practice reduces landfill pressure and saves energy.

Everyday Uses

Plastic extrusion shapes many products I use daily. I see its impact in packaging, construction, healthcare, and household items. The process creates PVC pipes, window frames, weather-stripping, storage containers, and plastic shelving. I also rely on extrusion for refrigerator door gaskets, vacuum cleaner hoses, door seals, window channels, bumper components, cable conduits, IV lines, catheters, packaging materials, and display stands.

• Window profiles
• Door frames
• Weather stripping
• Trim
• Seals
• Gaskets
• Tubing
• Household appliances
• Sporting goods
• Furniture components
• Toys
• Garden hoses

I recognize that applications for plastic extrusion extend to packaging, making these products indispensable in daily life. Single-use plastics offer convenience, but they also increase waste and present environmental challenges. I address these concerns by recycling and promoting sustainable practices.

Conventional plastic production has undeniable effects on our environment. Notably, the manufacturing process uses vast amounts of energy and raw materials, leading to CO2 emissions. Moreover, plastic materials’ durability and slow degradation can lead to long-term environmental harm if not disposed of responsibly.

I see that plastic extrusion supports sustainability by reducing the need for virgin plastic, conserving resources, and promoting a circular economy. Many extrusion lines use recycled plastics, which helps reduce waste and supports environmental goals. I believe that understanding the benefits and applications for plastic extrusion helps me make informed choices as a manufacturer and consumer.

I see plastic extrusion as a continuous process that transforms raw plastic into useful shapes. Material selection and temperature control play a key role in achieving quality outcomes. Additives improve plastic properties, and well-designed molds help me create the desired shapes. Understanding the limitations of extrusion, such as challenges with complex shapes and material compatibility, is vital.

I encourage readers to look around and notice how many everyday items rely on plastic extrusion. Recognizing these products helps me appreciate the role of plastic in modern life and supports informed choices for sustainability.

FAQ

What makes plastic extrusion different from other manufacturing methods?

I see plastic extrusion as a continuous process. I can produce long, uniform shapes with less waste. Other methods, like injection molding, create individual parts. Extrusion works best for pipes, sheets, and profiles. I choose it for efficiency and consistent quality.

Can I recycle plastic in the extrusion process?

I often recycle plastic during extrusion. I collect leftover material, melt it, and feed it back into the machine. This practice reduces waste and supports sustainability. I always check the quality of recycled plastic to ensure strong, reliable products.

What types of plastic work best for extrusion?

I use many types of plastic for extrusion. Polyethylene, polypropylene, and polystyrene perform well. I select the material based on the product’s needs. Some plastics offer flexibility, while others provide strength or clarity. I always match the plastic to the application.

How do I control the quality of extruded products?

I monitor temperature, pressure, and material purity throughout the plastic extrusion process. I inspect the surface finish and dimensions after cooling. I use quality checks at each stage. This approach helps me deliver reliable, high-quality extrusion products.

Is plastic extrusion suitable for custom shapes?

I use plastic extrusion to create custom profiles by designing specific dies. I can adjust the process for unique shapes and sizes. This flexibility allows me to meet special requirements in construction, automotive, and packaging industries.
