What is a Twin Screw Extruder and How Does It Work

What is a Twin Screw Extruder and How Does It Work

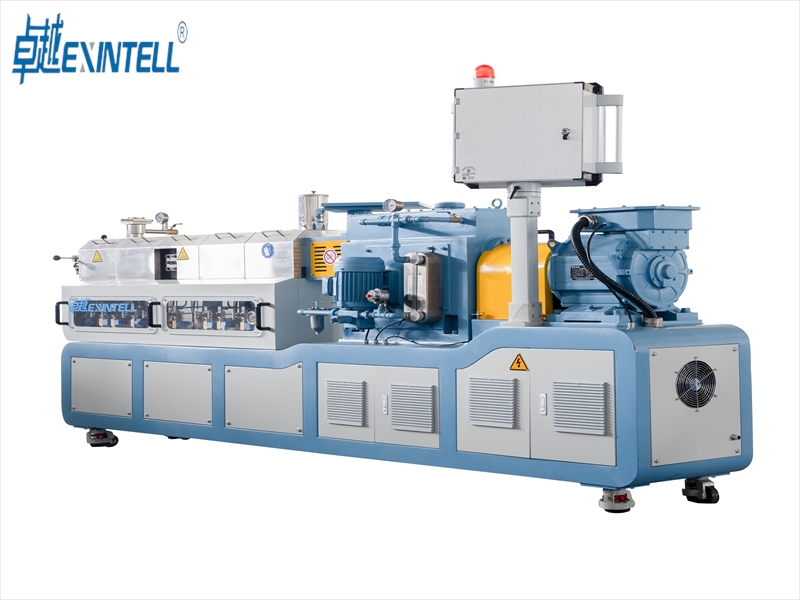

A twin screw extruder has two screws that turn together inside a barrel. These screws mix, move, and process materials very well. You can change the temperature, how fast the screws turn, and how much material goes in. This helps you get the same results every time. Here are some differences:

A twin screw extruder mixes better. It also lets out air more easily. Cleaning it is simpler too.

Key Takeaways

• Twin screw extruders mix and process better than single screw extruders. They are great for working with hard materials. These machines can work with many materials like plastics, rubber, and food. This makes them useful in many industries. You must check and fix the temperature and pressure often. This helps the twin screw extruders work well and stops them from breaking down. Twin screw extruders can clean themselves. This means you do not have to clean them by hand as much. It saves time and money when making things. Picking the right twin screw extruder is important. You can choose co-rotating or counter-rotating types. The right choice helps mix better and makes the product better for your material.

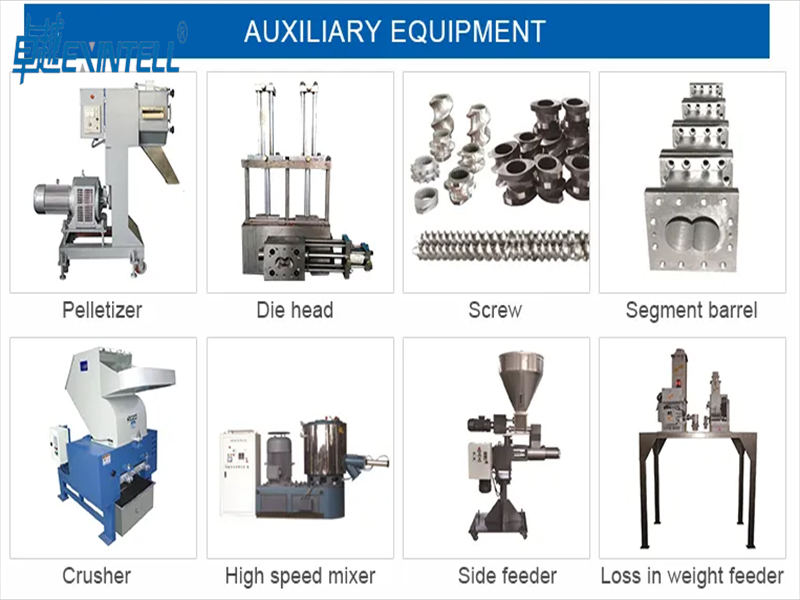

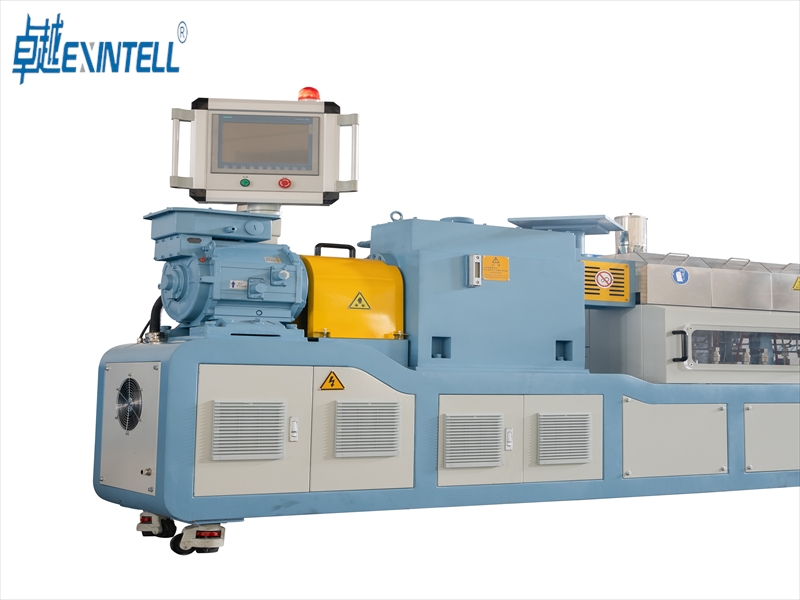

Twin Screw Extruder Components

Screws and Barrel

The screws and barrel are the main parts of twin screw extruders. The screws help move, mix, and melt materials. The barrel holds the screws and can heat or cool them. Most screws are made from strong metals to last a long time. Barrels often have parts you can change for different jobs. The twin screw design lets you use special parts like kneading blocks and mixing sections. These help mix things evenly and give you more control.

Tip: You can change modular barrels to add heating zones, venting, or side feeders for more options.

Feed System

The feed system puts raw materials into the extruder. You can use feeders that measure by volume or by weight. This helps you control how much material goes in. Good feeding keeps the flow steady and stops blockages. Twin screw extruders can handle powders, pellets, and liquids because they feed well.

• Volumetric feeders measure by volume.

• Gravimetric feeders measure by weight for better accuracy.

Heating and Cooling

You need the right temperature for the machine to work well. Twin screw extruders have many heating and cooling zones along the barrel. Each zone has its own controls. You can set the temperature for each part, like feeding, melting, and mixing. Most machines use electric heaters and water or oil for cooling. Good temperature control stops overheating and keeps your product good.

• Multi-zone temperature control keeps things stable.

• Smart controllers save energy and keep temperatures steady.

Die and Discharge

The die shapes the product as it comes out. You can pick different die shapes for pellets, sheets, or other forms. The discharge system must stay clear for smooth flow. If there is too much moisture or big pieces, you might get blockages. You should check your materials and formulas to stop these problems. A clean die and steady discharge help you get a good product every time.

Note: The die and discharge system can change how your product looks and how strong it is, so always check for blockages or buildup.

Twin screw extruders are special because their twin screw design gives better mixing, more control, and higher efficiency than single screw machines. You can use many types of materials and get the same results each time.

Types of Twin Screw Extruders

There are different types of twin screw extruders. You pick the type based on your material and what you want to make. Each type does its job in a special way.

Co-Rotating Extruders

Co-rotating extruders have both screws turning the same way. They mix things very well and spread materials evenly. This type is good for polymer blends, resin changes, and recycling. You can use them for food, like making textured vegetable protein. The screws fit together and help mix fast and even.

Tip: Co-rotating extruders let you control mixing and temperature better. They are great for products that need the same texture every time.

Counter-Rotating Extruders

Counter-rotating extruders have screws that turn in opposite ways. They make strong forces that help with thick materials. This type is best for PVC shapes, heat-sensitive stuff, and special shapes. You can use them for tires, seals, and car parts. The design makes tricky flow patterns that mix things well.

Intermeshing vs. Non-Intermeshing

You can pick intermeshing or non-intermeshing designs. Intermeshing screws fit close together. They mix the most and clean themselves. Non-intermeshing screws work alone. This setup is gentler and helps materials move and mix softly.

The shape and setup of screws change how well twin screw extruders work. You can use modular screws to change your machine for different jobs. You can set up blocks and mixing parts to get the best mixing. Counter-rotating screws mix better with their special flow. These features help you work faster and use the machine for many things.

Note: Parallel twin screw extruders give steady and even force. Conical twin screw extruders are good for melting and mixing in medium-sized jobs.

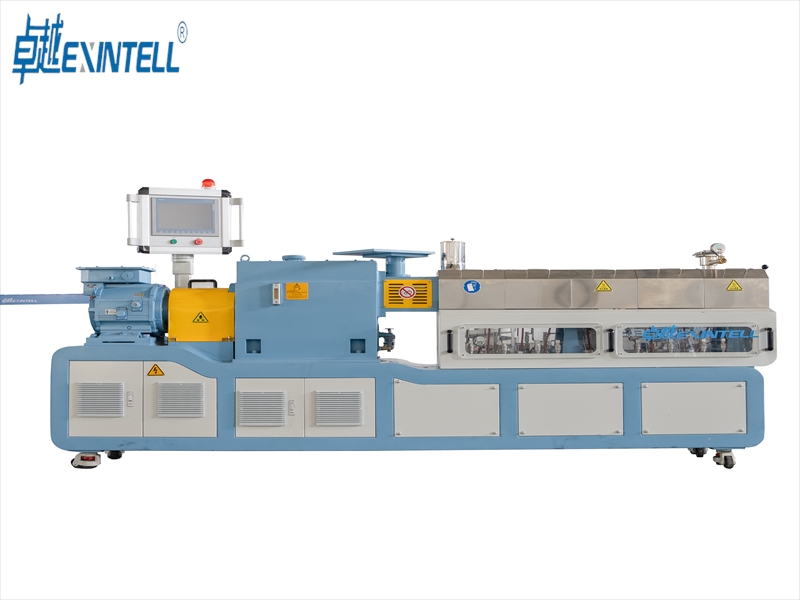

How Twin Screw Extruders Work

Material Feeding and Conveying

First, you get your raw materials ready. Make sure they are dry and clean. This helps stop problems later. You put the materials into the extruder with a feeder. Volumetric feeders measure by volume. Gravimetric feeders measure by weight and are more exact. Feeding the same amount each time is important for good plastic extrusion.

The screws inside pull the material forward. The screw and barrel design helps move things smoothly. Intermeshing screw designs stop leaks and work better. The feed section has grooves and cooling to help feed more material. You can control water and screw speed to keep things steady. The table below shows what affects feeding and moving material:

Tip: Always check your feeder and make sure materials are dry. This stops feed problems and keeps your process smooth.

Mixing and Compounding

When the material goes into the screws, mixing starts. The twin screw extruder uses two screws to mix and knead. This mixes better than a single screw extruder. You can add fillers, color, or additives at different spots. This makes twin screw extruders great for polymer compounding.

The screws have special parts like kneading blocks and mixing sections. These break up clumps and spread things out. You get a smooth blend, which is needed for good plastic extrusion. The table below compares mixing and compounding:

You can use the extruder for many jobs, like polymer compounding and recycling. The screw design lets you change mixing strength and time. This helps you get the product you want.

Note: For the best results, use modular screw elements. You can change them to fit your material and process.

Melting and Homogenization

As the material moves forward, it gets hot and melts. The twin screw extruder has many heating zones along the barrel. Each zone has its own temperature control. You can set the right heat for each step. For example, polypropylene melts at 170 °C. Most energy heats the material before it melts. The temperature goes up fast, often in less than two seconds.

• It takes about 77.75 kW to heat solid polymer to 170 °C at 1200 kg/hr.

• Melting the polymer at this rate uses about 20.0 kW.

• The total energy for melting is about 0.081 kWh per kilogram.

• Specific mechanical energy for resin melting is 0.092 kWh/kg at 400 rpm and 0.097 kWh/kg at 800 rpm.

• The energy to heat the melt to discharge temperature changes with screw speed: 40.17 kW at 400 rpm (221.5 °C), 42.9 kW at 600 rpm (225 °C), and 47.6 kW at 800 rpm (231 °C).

When the polymer is melted, mixing parts even out the heat and blend. Spiral mixers and Maddock-style mixers break up gels and spread additives. This step is important for polymer compounding and makes your product even.

Tip: Use the right screw speed and temperature. This stops polymer damage. Watch for hot spots and adjust to keep things safe.

Extrusion Process

After melting and mixing, the material goes to the die. The die shapes the material into pellets, sheets, or other forms. Keep the die and discharge area clean to stop blockages. Check for pressure changes and change screens if needed.

Here are the main steps in the extrusion process:

1. Get your materials ready and check the machine.

2. Start the machine when the temperature is right.

3. Slowly speed up the screws and watch the torque.

4. Check and adjust the process as needed.

5. Stop feeding, push out the last material, and turn off the power.

You can use the twin screw extruder for many plastic jobs. It works well for polymer compounding, masterbatch, and recycling. The process gives you good, steady products every time.

Note: To avoid downtime, always follow a maintenance schedule. This keeps your extruder working well and your process on track.

Benefits of Twin Screw Extruders

Superior Mixing and Venting

Twin screw extruders mix materials much better. They use two screws that fit together. These screws make strong forces that help blend things. You can mix fillers and additives so everything is even. The machine also removes bad gases while mixing. This keeps your product good. The table below shows how twin screw extruders are better than single screw extruders:

• Twin screw extruders mix better because of their design.

• They control heat and remove bad gases while working.

• They blend fillers and additives so everything is even.

High Production Capacity

Twin screw extruders can make more products faster. You can process lots of material in less time. Many companies use these machines for making things. The chart below shows how different industries use twin screw extruders:

Over 70% of engineering plastics use twin screw extruders. Snack makers and drug companies also use these machines for high output.

Self-Cleaning and Maintenance

Twin screw extruders clean themselves as they work. This stops material from building up inside. You do not need to stop the machine often to clean it. This saves money and keeps your production going.

Tip: Check your machine often to stop problems. This helps your extruder stay in good shape.

Material Flexibility

Twin screw extruders can work with many materials. You can use them for compounding, masterbatch, engineering plastics, wire and cable materials, degradable plastics, thermoplastic elastomers, and more. They can also process recycled plastics and strong materials. This means you can make different products without changing machines.

• Compounding

• Masterbatch

• Engineering plastics modification

• Wire and cable materials

• Degradable plastics

• Thermoplastic elastomers

• High performance plastics

• Polymerization reactions

• Polymer devolatilization

• Polyolefin powder granulation

• Recycled plastics

• Ultra-high molecular mass polyethylene fiber

Twin screw extruders help you use less energy. They also help you meet environmental rules. Smart controls and energy-saving systems make your process better.

Applications and Practical Tips

Common Uses in Industry

Twin screw extruders are used in many industries. These machines help make products quickly and with good quality. Here are some ways people use them:

• Plastics industry: They are used for compounding, melting, and shaping thermoplastics.

• Rubber and elastomer processing: They help make rubber parts for cars and machines.

• Food industry: They process snacks, cereals, and pet food with good heat control.

• Pharmaceutical and biomedical: They make drug delivery systems and special medicines.

• Recycling and reprocessing: They turn plastic waste into new materials.

• Polymer compounding and masterbatch production: They mix polymers with additives for strong plastics.

Twin screw extruders let you do many jobs. You can switch tasks without changing the machine.

Material Compatibility

You need to know how materials act in twin screw extruders. Some materials need extra care for the best results. The table below shows how two common materials work with these machines:

Twin screw extruders can handle many materials. You must change the process for each material to get the best quality.

Maintenance Tips

You want your extruder to last and work well. Follow these tips to keep it in good shape:

1. Calibrate temperature, pressure, and screw speed often.

2. Check electrical wiring and controls to stop failures.

3. Set a regular maintenance schedule and keep records.

4. Train your team on how to care for the machine.

5. Use high-quality materials and lubricants.

6. Watch performance numbers to catch problems early.

7. Work with skilled service providers for support.

Tip: Good maintenance stops downtime and keeps your machine running well.

Twin screw extruders are used in plastics, food, pharmaceuticals, and recycling. You can trust these machines for steady and flexible production.

You now know that a twin screw extruder gives high output. It mixes materials well and is easy to keep clean. This machine works with many types of materials. It is used in lots of different industries. When picking a twin screw extruder, think about your material. Also, look at how you control temperature and your budget. New features like AI help you work smarter. Energy-saving designs also make your job easier.

FAQ

What materials can you process with a twin screw extruder?

You can use plastics, rubber, food, and medicine. Twin screw extruders work with powders, pellets, and liquids. You can mix fillers and additives to make custom products.

How do you clean a twin screw extruder?

You clean the machine by running a cleaning compound inside. The self-cleaning design helps get rid of leftover material. You can open the barrel for deep cleaning if you need to.

Why should you choose a twin screw extruder over a single screw extruder?

You get better mixing and higher output. Maintenance is easier too. Twin screw extruders handle more materials. You can control temperature and screw speed for steady results.

Can you change the screw configuration?

Yes, you can change screw parts and layout. Modular screws let you adjust mixing and processing for different jobs. You can swap kneading blocks or mixing sections easily.

What maintenance steps should you follow?

Check temperature, screw speed, and pressure often. Clean the barrel and screws regularly. Keep records of maintenance. Train your team to spot problems early.
